FTSH-132-02-F-DV-EL-A
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 64POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FTSH-132-02-F-DV-EL-A Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FTSH
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:64
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Lock
- Contact Length - Mating:0.075" (1.90mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.099" (2.51mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Guide, Board Lock, End Shrouds
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3.4A per Contact
- Voltage Rating:-
Related Products

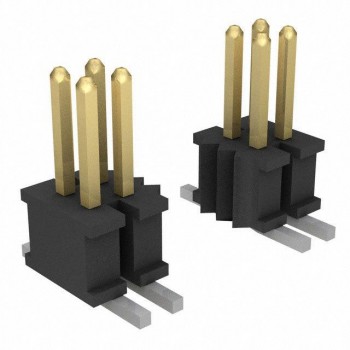

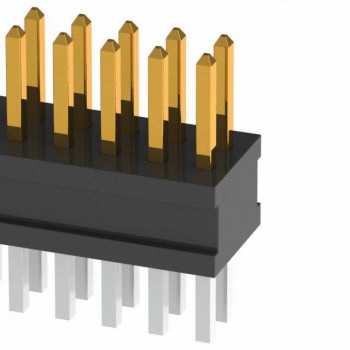

CONN HEADER VERT 92POS 1.27MM
Call for price
CONN HEADER VERT 92POS 1.27MM
Call for price
CONN HEADER VERT 92POS 1.27MM
Call for price
CONN HEADER VERT 48POS 1.27MM
Call for price
CONN HEADER VERT 72POS 1.27MM
Call for price

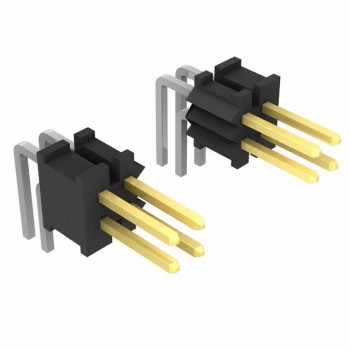

CONN HEADER R/A 72POS 1.27MM
