NPPC222LJBN-RC
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant

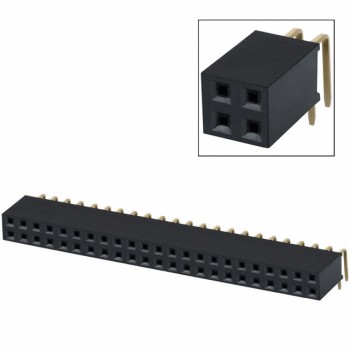

- DescriptionCONN HDR 44POS 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet NPPC222LJBN-RC Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$1.68
- 10,000$1.68
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:44
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Insulation Color:Black
- Insulation Height:0.200" (5.08mm)
- Contact Length - Post:0.124" (3.15mm)
- Operating Temperature:-40°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:250V
