316-83-138-41-002101

Preci-Dip
In Stock: 145

Can ship immediately

Pricing:
  • 1$4.82083
  • 120$4.30183

Quote It

Technical Details

  • Series:316
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:38
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.433" (11.00mm)
  • Contact Length - Post:0.126" (3.20mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


316-83-140-41-002101

CONN SOCKET 40POS 0.1 GOLD PCB

316-83-140-41-002101 Datasheet
  • 1: $4.82083
  • 120: $4.52825

416-83-238-41-002101

CONN SOCKET 38POS 0.1 GOLD PCB

416-83-238-41-002101 Datasheet
  • 1: $4.82083
  • 120: $4.30183

316-83-149-41-003101

CONN SOCKET 49POS 0.1 GOLD PCB

316-83-149-41-003101 Datasheet
  • 1: $4.82125
  • 120: $4.52867

322-87-157-41-001101

CONN SOCKET 57POS 0.1 GOLD PCB

322-87-157-41-001101 Datasheet
  • 1: $4.82182
  • 110: $4.60136

316-87-145-41-009101

CONN SOCKET 45POS 0.1 GOLD PCB

316-87-145-41-009101 Datasheet
  • 1: $4.82342
  • 120: $4.37267

833-83-058-10-001101

CONN SOCKET 58POS 0.079 GOLD PCB

833-83-058-10-001101 Datasheet
  • 1: $4.82380
  • 100: $4.82380

801-83-039-30-001101

CONN SOCKET 39POS 0.1 GOLD SMD

801-83-039-30-001101 Datasheet
  • 1: $4.82394
  • 160: $4.53106

SFM315-LPPE-D33-SM-BK

CONN HDR 66POS 0.039 GOLD SMD

SFM315-LPPE-D33-SM-BK Datasheet
  • 1: $4.82430
  • 1000: $4.82430

SFM315-LPPE-D33-SP-BK

CONN HDR 66POS 0.039 GOLD SMD

SFM315-LPPE-D33-SP-BK Datasheet
  • 1: $4.82430
  • 1000: $4.82430

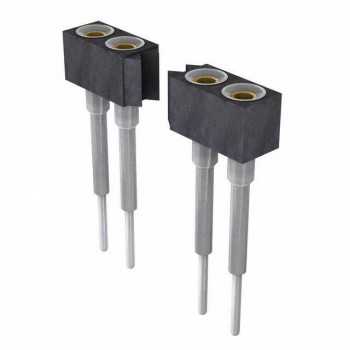

317-83-134-41-026101
