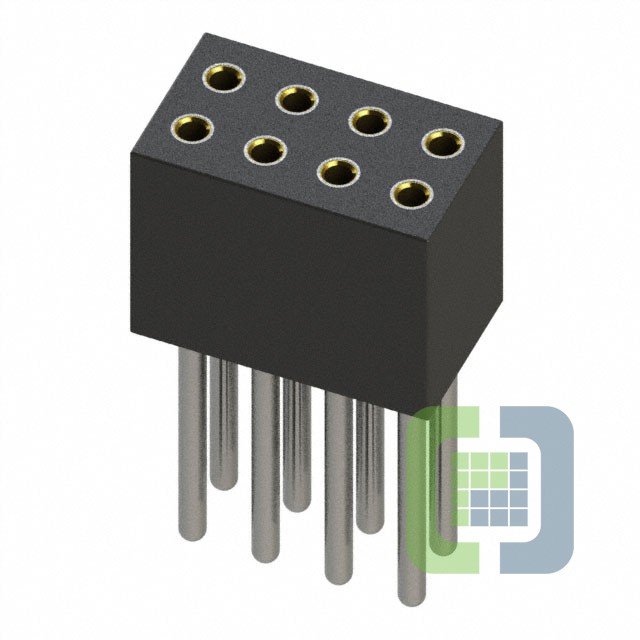

853-41-008-10-011000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 8POS 0.05 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 853-41-008-10-011000 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$13.4388
- 50$13.2966
Quote It
Technical Details
- Series:853
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:8
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.158" (4.01mm)
- Contact Length - Post:0.199" (5.05mm)
- Operating Temperature:-
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
