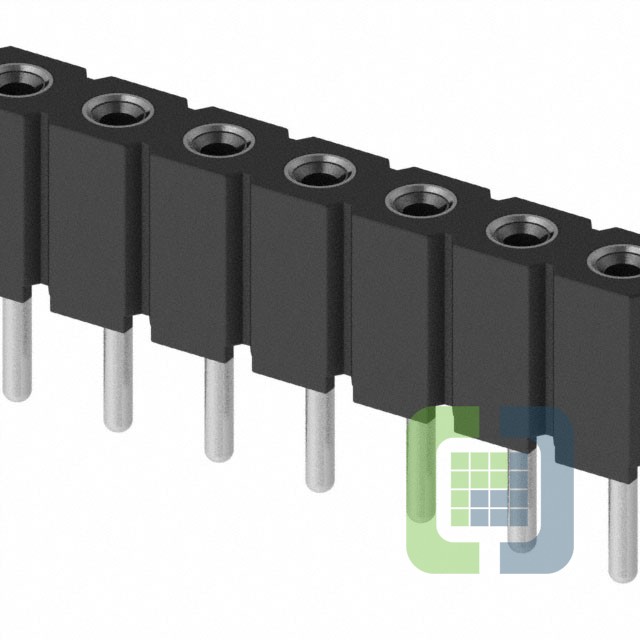

801-99-032-10-012000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 32POS 0.1 TIN-LEAD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 801-99-032-10-012000 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$13.8262
- 50$13.6612
Quote It
Technical Details
- Series:801
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:32
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Insulation Color:Black
- Insulation Height:0.165" (4.20mm)
- Contact Length - Post:0.125" (3.18mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin-Lead
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.5A
- Voltage Rating:-
