853-87-066-30-051101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant

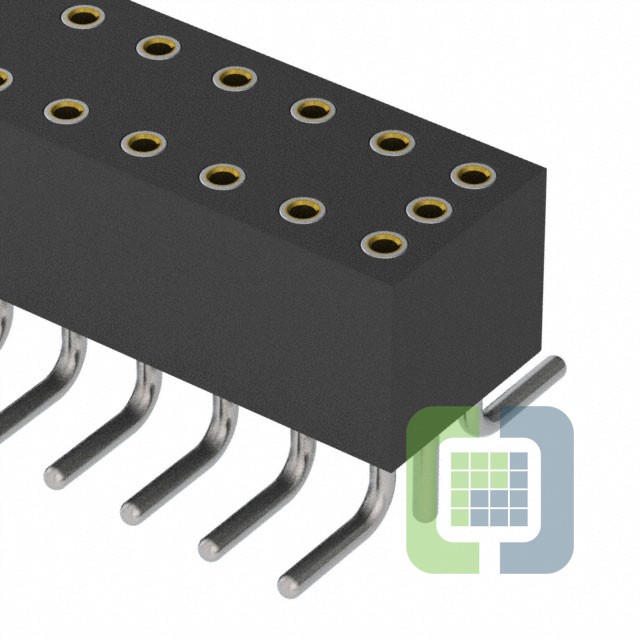

- DescriptionCONN SOCKET 66POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 853-87-066-30-051101 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$13.92225
- 40$12.6215
Quote It
Technical Details
- Series:853
- Package:Bulk
- Part Status:Active
- Connector Type:Socket
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:66
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Insulation Color:Black
- Insulation Height:0.203" (5.16mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Guide
- Current Rating (Amps):1A
- Voltage Rating:-
