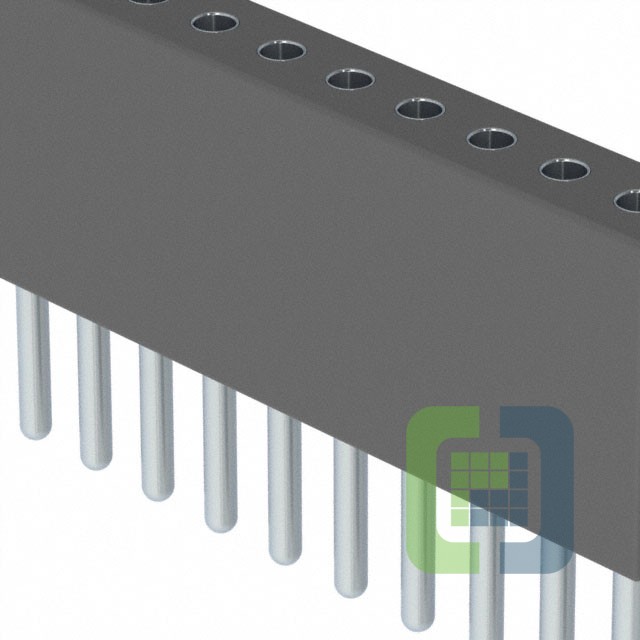

851-99-015-10-002000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 15P 0.05 TIN-LEAD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 851-99-015-10-002000 Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$13.94
- 50$13.8908
Quote It
Technical Details
- Series:851
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:15
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Insulation Color:Black
- Insulation Height:0.185" (4.70mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin-Lead
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:-
