316-43-162-41-001000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant

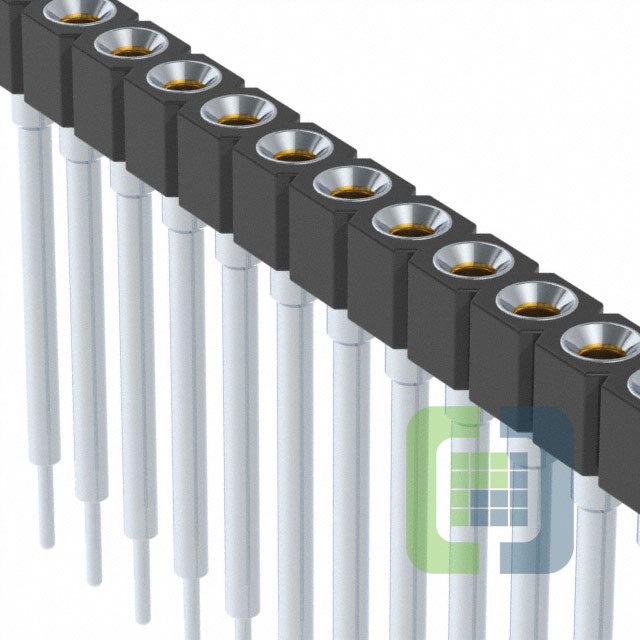

- DescriptionCONN SOCKET 62POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 316-43-162-41-001000 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$14.02
- 10$12.74923
- 25$12.43047
- 50$11.47419
- 100$10.83679
- 250$9.88058
- 500$9.24313
Quote It
Technical Details
- Series:316
- Package:Bulk
- Part Status:Active
- Connector Type:Elevated Socket
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:62
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.594" (15.09mm)
- Contact Length - Post:0.118" (3.00mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:-
