316-93-115-41-001000

Mill-Max
In Stock: 176

Can ship immediately

Pricing:
  • 1$14.042
  • 50$13.8602

Quote It

Technical Details

  • Series:316
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:15
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.594" (15.09mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin-Lead
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


346-41-128-41-012000

CONN RCPT 28POS 0.1 GOLD PCB

346-41-128-41-012000 Datasheet
  • 1: $14.04200
  • 50: $13.66640

346-91-128-41-012000

CONN RCPT 28POS 0.1 GOLD PCB

346-91-128-41-012000 Datasheet
  • 1: $14.04200
  • 50: $13.66640

803-83-086-65-410101

CONN SOCKET 86POS 0.1 GOLD PCB

803-83-086-65-410101 Datasheet
  • 1: $14.04220
  • 50: $13.26740

803-99-040-10-002000

SOCKET DUAL INLINE LOWPRO 40POS

  • 1: $14.04380

855-87-150-10-001101

CONN SOCKET 150POS 0.05 GOLD PCB

855-87-150-10-001101 Datasheet
  • 1: $14.04486
  • 72: $13.48181

310-91-152-41-001000

CONN RCPT 52POS 0.1 GOLD PCB

310-91-152-41-001000 Datasheet
  • 1: $14.04540
  • 50: $13.65780

324-11-108-41-002000

CONN RCPT 8POS 0.1 GOLD PCB

324-11-108-41-002000 Datasheet
  • 1: $14.04540
  • 50: $13.83640

801-41-028-10-013000

CONN RCPT 28POS 0.1 GOLD PCB

801-41-028-10-013000 Datasheet
  • 1: $14.04540
  • 50: $13.61360

311-13-116-41-003000

STANDRD SOLDER TAIL SIP SOCKET

  • 1: $14.04540

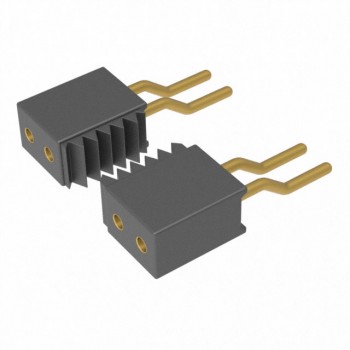

851-11-005-40-001000
