1417700000
Weidmuller- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 18POS 0.197 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 1417700000 Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$25.4876
- 25$24.3548
Quote It
Technical Details
- Series:Omnimate RSV
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:18
- Number of Positions Loaded:All
- Pitch - Mating:0.197" (5.00mm)
- Number of Rows:3
- Row Spacing - Mating:0.197" (5.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Gray
- Insulation Height:0.563" (14.30mm)
- Contact Length - Post:0.177" (4.50mm)
- Operating Temperature:-20°C ~ 120°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Mounting Flange
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

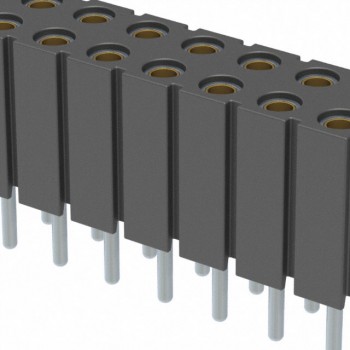

STANDARD SOCKET HEADER
