0009523061

Woodhead - Molex
In Stock: 132

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:KK396, 2145
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Board Edge, Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp



  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Insulation Color:White
  • Insulation Height:0.308" (7.82mm)
  • Contact Length - Post:0.145" (3.68mm)
  • Operating Temperature:-40°C ~ 80°C
  • Material Flammability Rating:UL94 V-2
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):4.5A
  • Voltage Rating:600V

Related Products


0009523071

CONN RCPT 7P 0.156 TIN EDGE MNT

Call for price


0009523081

CONN RCPT 8P 0.156 TIN EDGE MNT

Call for price


0009523091

CONN RCPT 9P 0.156 TIN EDGE MNT

Call for price


0009523101

CONN RCPT 10P 0.156 TIN EDGE MNT

Call for price


0009523111

CONN RCPT 11P 0.156 TIN EDGE MNT

Call for price

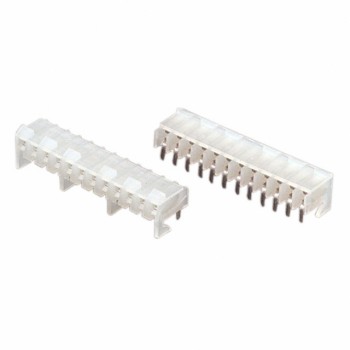

0009523121

CONN RCPT 12P 0.156 TIN EDGE MNT

Call for price

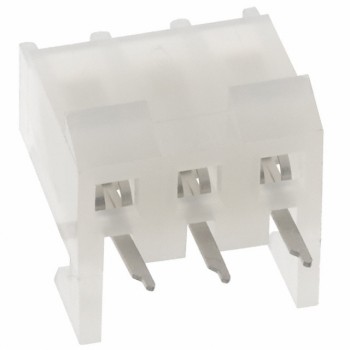

0009523032

CONN RCPT 3POS 0.156 TIN PCB

0009523032 Datasheet

Call for price

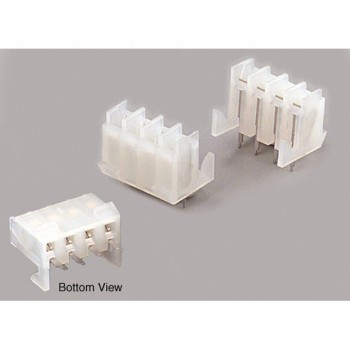

0009523042

CONN RCPT 4POS 0.156 TIN PCB

0009523042 Datasheet

Call for price

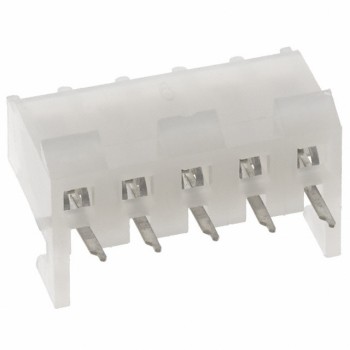

0009523052

CONN RCPT 5POS 0.156 TIN PCB

Call for price

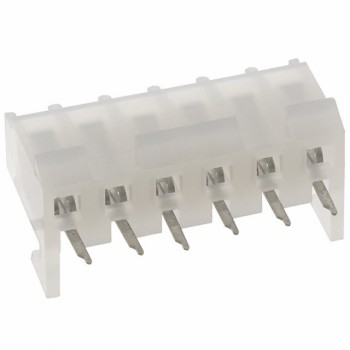

0009523062
