SSQ-104-22-S-D

Samtec, Inc.
In Stock: 1,419

Can ship immediately

Pricing:
  • 1$3.11

Quote It

Technical Details

  • Series:SSQ
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.335" (8.51mm)
  • Contact Length - Post:0.194" (4.93mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):6.3A per Contact
  • Voltage Rating:550VAC

Related Products


SSQ-104-04-G-D

CONN RCPT 8POS 0.1 GOLD PCB

  • 1: $3.11000

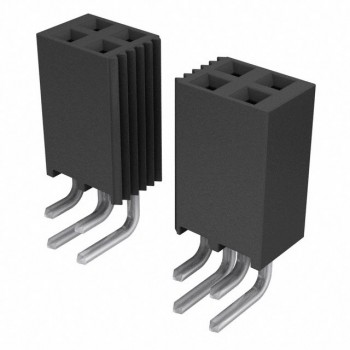

SSQ-105-02-S-D-RA

CONN RCPT .100" 10PS DL R/A GOLD

SSQ-105-02-S-D-RA Datasheet
  • 1: $3.11000

SFMC-105-L1-L-D-P-TR

CONN RCPT 10POS 0.05 GOLD PCB

SFMC-105-L1-L-D-P-TR Datasheet
  • 1: $2.54520
  • 125: $2.16346

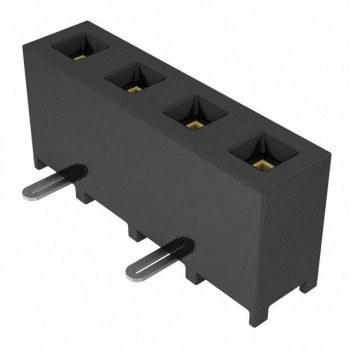

SMM-104-02-S-S-K-TR

CONN RCPT 4POS 0.079 GOLD SMD

SMM-104-02-S-S-K-TR Datasheet
  • 1: $2.55000
  • 1125: $1.25685
  • 2250: $1.22850

FLE-106-01-G-DV-P-TR

CONN RCPT 12POS 0.05 GOLD SMD

FLE-106-01-G-DV-P-TR Datasheet
  • 1: $2.55000
  • 775: $1.37701
  • 1550: $1.30050

SSW-110-02-F-D-RA-LL

CONN RCPT 20POS 0.1 GOLD PCB R/A

  • 1: $3.46000

SQW-105-01-L-D-VS-P

CONN RCPT 10POS 0.079 GOLD SMD

  • 1: $3.56000

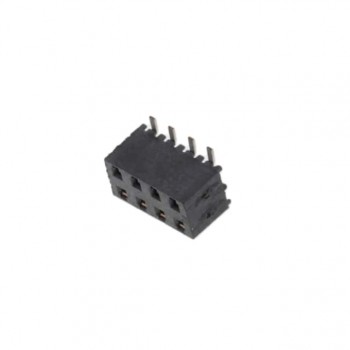

MMS-104-02-L-DV-K-TR

CONN RCPT 8POS 0.079 GOLD SMD

  • 1: $2.58000
  • 725: $1.44200
  • 1450: $1.33900

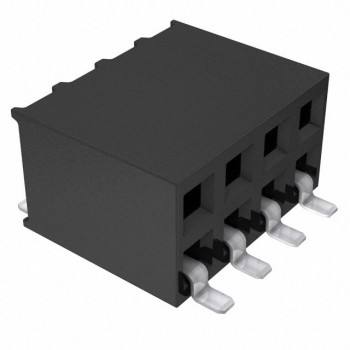

SSM-104-LM-DH
