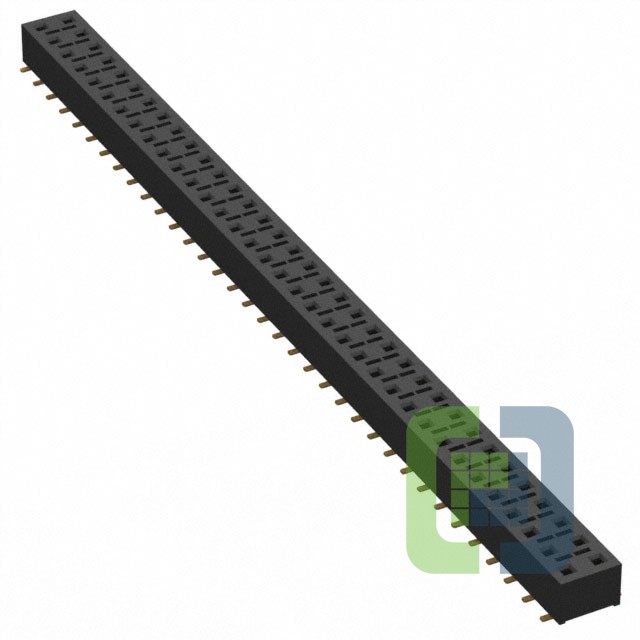

HLE-135-02-G-DV-BE
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 70POS 0.1 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 419
Can ship immediately
Pricing:
- 1$16.42
Quote It
Technical Details
- Series:HLE
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Bottom Entry
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:70
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.144" (3.66mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.1A per Contact
- Voltage Rating:400VAC
