SSW-106-03-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

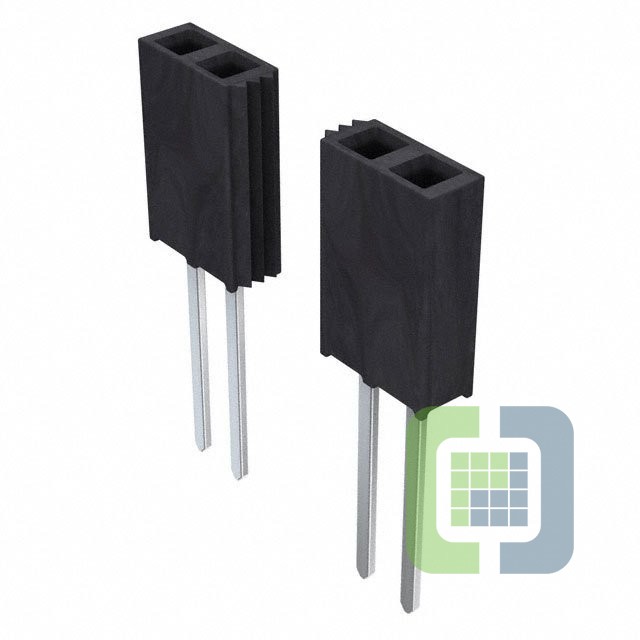

- DescriptionCONN RCPT 6POS 0.1 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSW-106-03-T-S Datasheet
-
ECAD Model
- Share
In Stock: 728
Can ship immediately
Pricing:
- 1$0.76
- 10$0.58921
- 100$0.4496
- 500$0.35967
- 1,000$0.31972
- 5,000$0.25977
- 10,000$0.25477
Quote It
Technical Details
- Series:SSW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:6
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.335" (8.51mm)
- Contact Length - Post:0.394" (10.00mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.7A per Contact
- Voltage Rating:-
