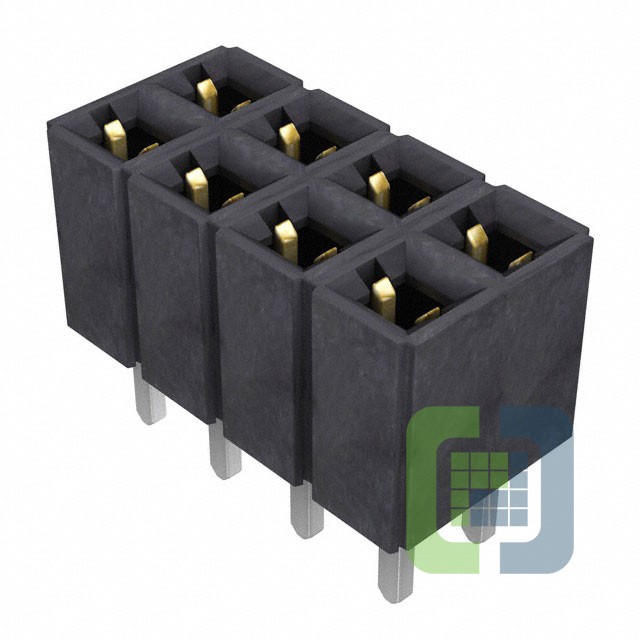

SLW-104-01-F-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 8POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SLW-104-01-F-D Datasheet
-
ECAD Model
- Share
In Stock: 569
Can ship immediately
Pricing:
- 1$1.14
- 10$0.94768
- 100$0.70185
- 500$0.56148
- 1,000$0.50883
- 5,000$0.44742
- 10,000$0.43865
Quote It
Technical Details
- Series:SLW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:8
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Insulation Color:Black
- Insulation Height:0.180" (4.57mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:6.09mm
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
