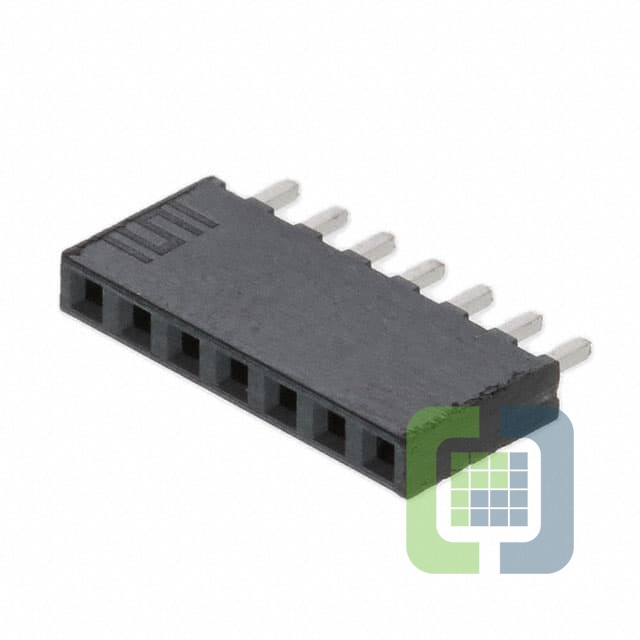

SQT-107-01-F-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 7POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SQT-107-01-F-S Datasheet
-
ECAD Model
- Share
In Stock: 355
Can ship immediately
Pricing:
- 1$1.39
- 39$1.0697
- 117$0.85569
- 507$0.68453
- 1,014$0.62035
- 5,031$0.54548
- 10,023$0.53479
Quote It
Technical Details
- Series:SQT
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:7
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Insulation Color:Black
- Insulation Height:0.250" (6.35mm)
- Contact Length - Post:0.090" (2.29mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.1A per Contact
- Voltage Rating:-
