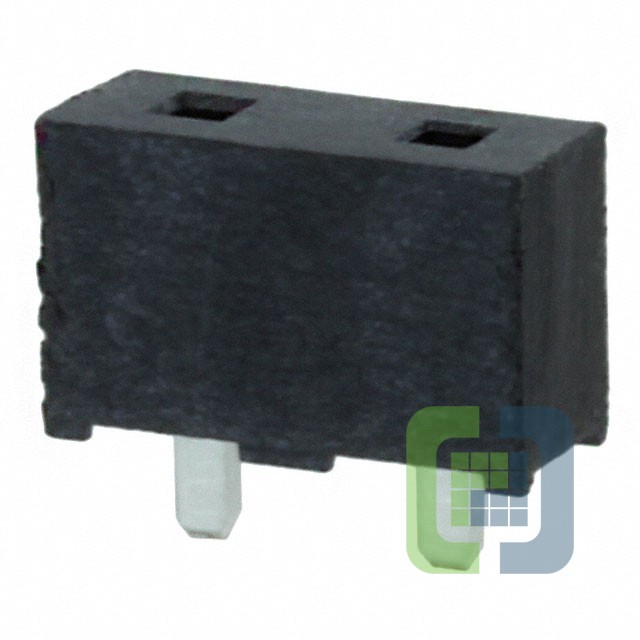

PSS-02-01-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 2POS 0.2 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet PSS-02-01-T-S Datasheet
-
ECAD Model
- Share
In Stock: 481
Can ship immediately
Pricing:
- 1$1.64
- 56$1.12953
- 112$1.01656
- 504$0.84715
- 1,008$0.75114
- 5,040$0.70596
- 10,024$0.69184
Quote It
Technical Details
- Series:PSS
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:2
- Number of Positions Loaded:All
- Pitch - Mating:0.200" (5.08mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.250" (6.35mm)
- Contact Length - Post:0.090" (2.29mm)
- Operating Temperature:-
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
