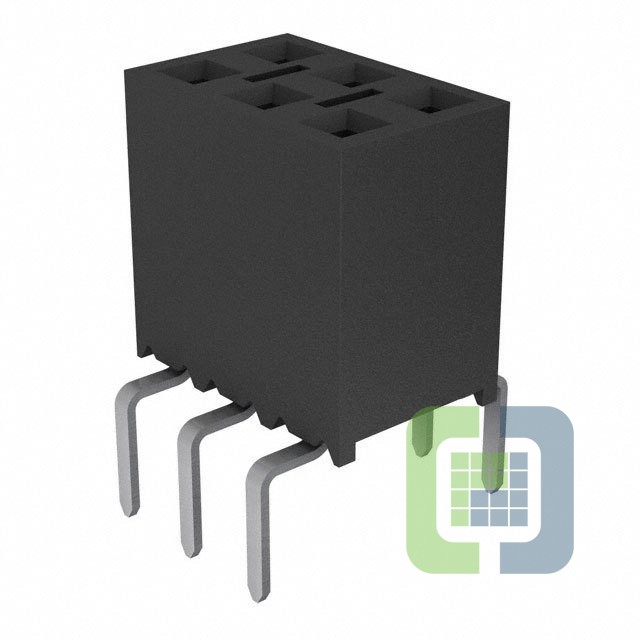

BCS-103-L-D-PE-BE
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 6POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet BCS-103-L-D-PE-BE Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
- 1$2.1
- 10$1.73923
- 100$1.30458
- 500$1.08715
- 1,000$0.96394
- 5,000$0.90596
- 10,000$0.88785
Quote It
Technical Details
- Series:Tiger Claw™ BCS
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Pass Through
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:6
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.290" (7.37mm)
- Contact Length - Post:0.128" (3.25mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.6A per Contact
- Voltage Rating:475VAC
