CLH-106-F-D-BE

Samtec, Inc.

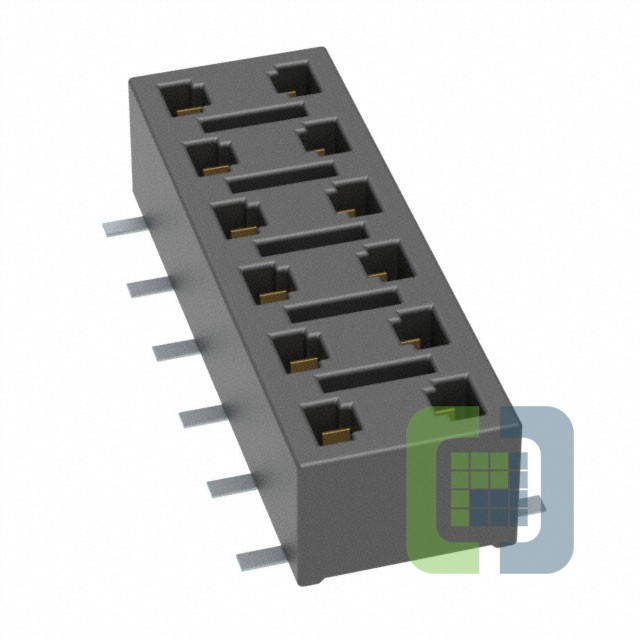

CLH-106-F-D-BE Gallery image caption
In Stock: 304

Can ship immediately

Pricing:
  • 1$2.48
  • 10$2.05154
  • 100$1.53866
  • 500$1.28221
  • 1,000$1.1369
  • 5,000$1.06851
  • 10,000$1.04714

Quote It

Technical Details

  • Series:CLH
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:12
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Insulation Color:Black
  • Insulation Height:0.140" (3.56mm)
  • Contact Length - Post:-
  • Operating Temperature:-65°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
