CLT-104-02-L-D-BE-A

Samtec, Inc.

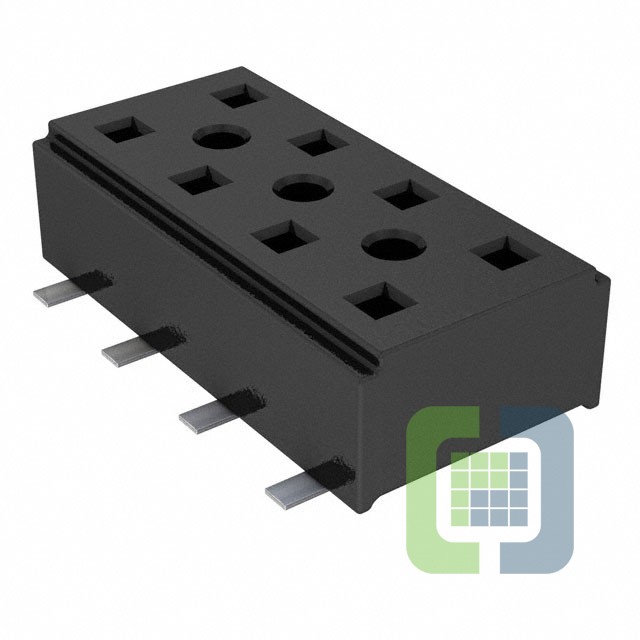

CLT-104-02-L-D-BE-A Gallery image caption
In Stock: 396

Can ship immediately

Pricing:
  • 1$2.62
  • 10$2.16599
  • 100$1.62421
  • 500$1.35351
  • 1,000$1.20011
  • 5,000$1.12793

Quote It

Technical Details

  • Series:CLT
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.083" (2.10mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Guide
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:-
