SMS-120-01-G-S

Samtec, Inc.

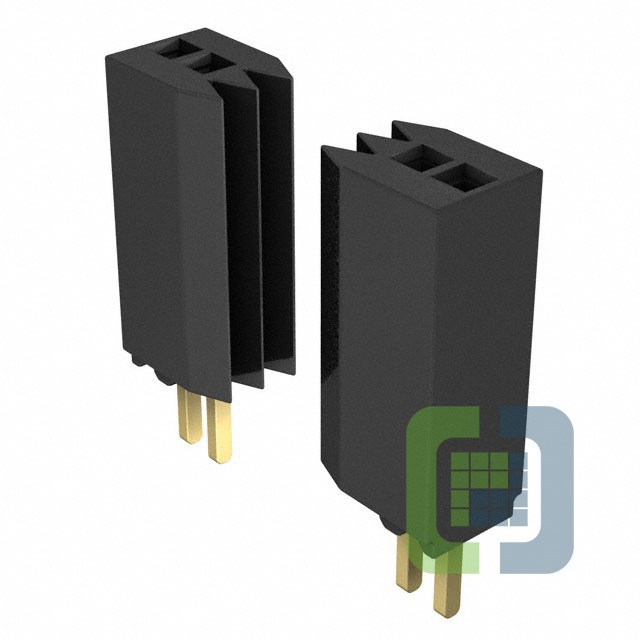

SMS-120-01-G-S Gallery image caption
In Stock: 178

Can ship immediately

Pricing:
  • 1$3.86
  • 22$3.26212
  • 110$2.52088
  • 506$2.07601
  • 1,012$1.92773
  • 5,016$1.81652

Quote It

Technical Details

  • Series:SMS
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.335" (8.51mm)
  • Contact Length - Post:0.100" (2.54mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):5A per Contact
  • Voltage Rating:-
