HLE-113-02-G-DV

Samtec, Inc.

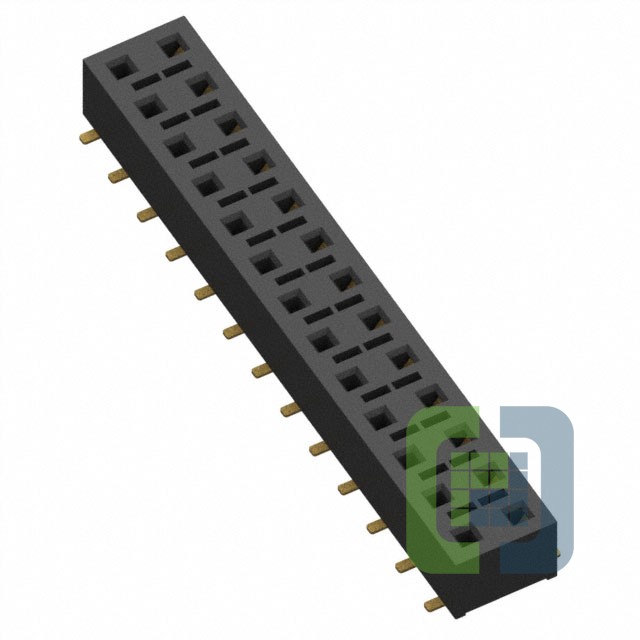

HLE-113-02-G-DV Gallery image caption
In Stock: 191

Can ship immediately

Pricing:
  • 1$4.85
  • 10$4.10207
  • 100$3.16979
  • 500$2.61041
  • 1,000$2.42395

Quote It

Technical Details

  • Series:HLE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:26
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.144" (3.66mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:400VAC
