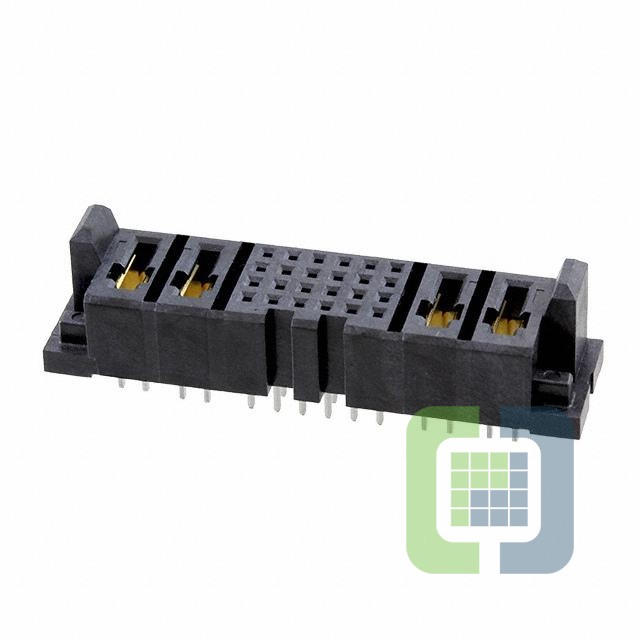

MPSC-02-24-02-7.70-01-L-V
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 28POS GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet MPSC-02-24-02-7.70-01-L-V Datasheet
-
ECAD Model
- Share
In Stock: 201
Can ship immediately
Pricing:
- 1$7.52
- 60$5.88671
- 120$5.23263
- 540$4.41503
- 1,020$4.16975
Quote It
Technical Details
- Series:PowerStrip™ 30 MPSC
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:28 (24 + 4 Power)
- Number of Positions Loaded:All
- Pitch - Mating:-
- Number of Rows:4
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.298" (7.57mm)
- Contact Length - Post:0.107" (2.71mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
