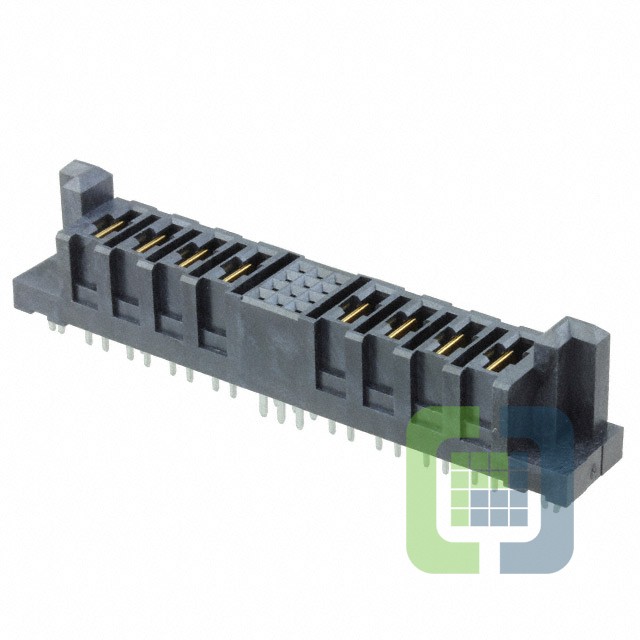

PESC-04-12-04-01-L-VT-LC
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet PESC-04-12-04-01-L-VT-LC Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$19.07
- 10$18.42821
- 25$17.79207
- 50$17.15678
- 100$16.52121
- 250$16.20348
- 500$15.88577
Quote It
Technical Details
- Series:PowerStrip™ 35 PESC
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:20 (12 + 8 Power)
- Number of Positions Loaded:All
- Pitch - Mating:-
- Number of Rows:4
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.497" (12.62mm)
- Contact Length - Post:0.097" (2.47mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
