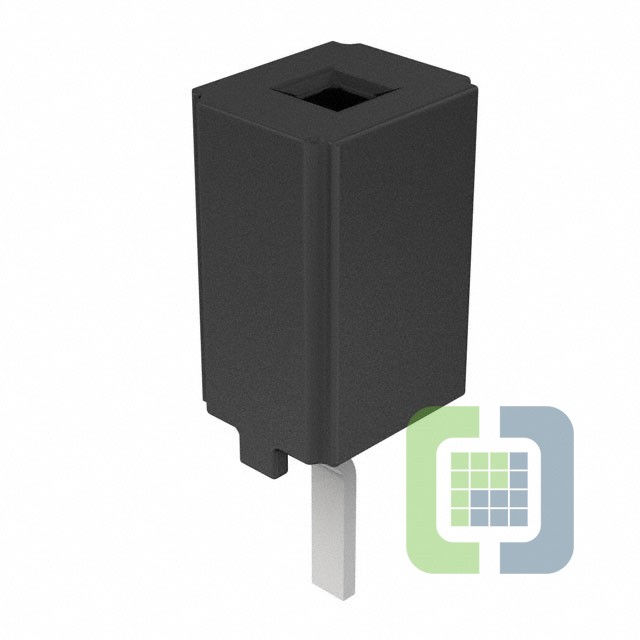

CES-101-01-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 1POS TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet CES-101-01-T-S Datasheet
-
ECAD Model
- Share
In Stock: 4,611
Can ship immediately
Pricing:
- 1$0.17
- 10$0.15867
- 25$0.11824
- 50$0.10124
- 100$0.09794
- 250$0.08443
- 500$0.08105
Quote It
Technical Details
- Series:CES
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:1
- Number of Positions Loaded:All
- Pitch - Mating:-
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.200" (5.08mm)
- Contact Length - Post:0.128" (3.25mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
