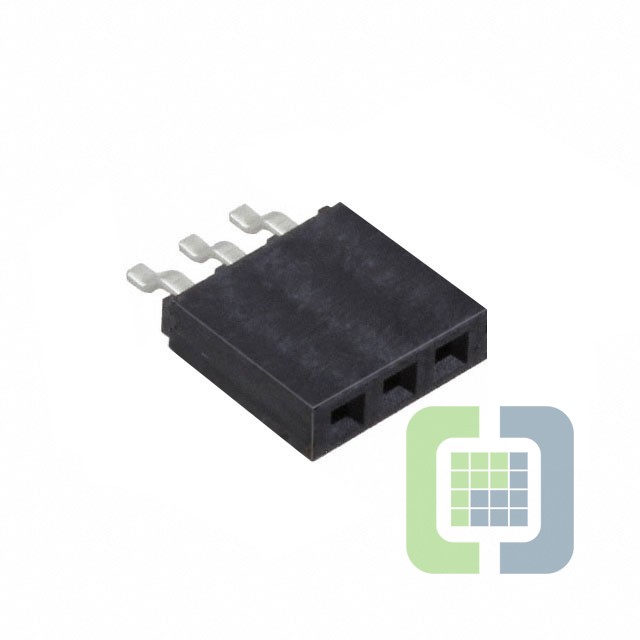

SMH-103-02-T-S-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 3POS 0.1 TIN SMD R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SMH-103-02-T-S-TR Datasheet
-
ECAD Model
- Share
In Stock: 519
Can ship immediately
Pricing:
- 1$0.88
- 125$0.608
- 250$0.532
- 625$0.4864
- 875$0.456
- 1,250$0.4408
- 3,125$0.3952
- 6,250$0.3876
- 12,500$0.3724
Quote It
Technical Details
- Series:SMH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:3
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.095" (2.41mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
