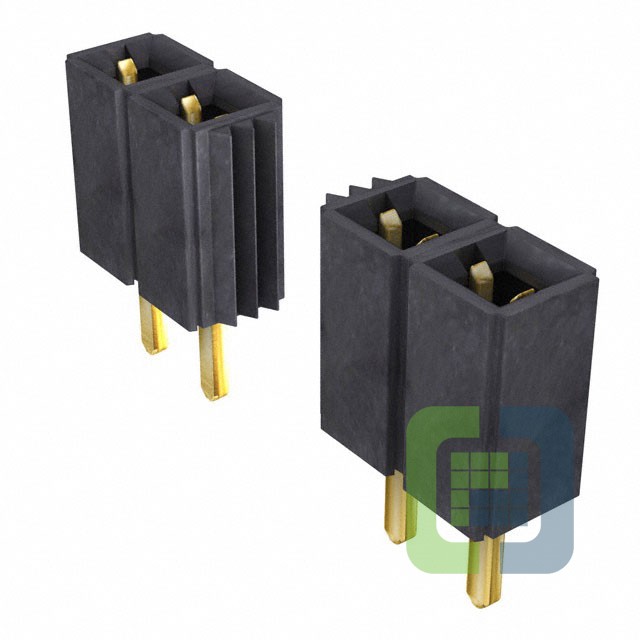

SLW-105-01-G-S

Samtec, Inc.
In Stock: 4,302

Can ship immediately

Pricing:
  • 1$0.97
  • 10$0.85628
  • 25$0.80588
  • 50$0.77243
  • 100$0.73876
  • 250$0.67164
  • 500$0.60448

Quote It

Technical Details

  • Series:SLW
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board
  • Number of Positions:5
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.180" (4.57mm)
  • Contact Length - Post:0.115" (2.92mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:6.09mm
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-
