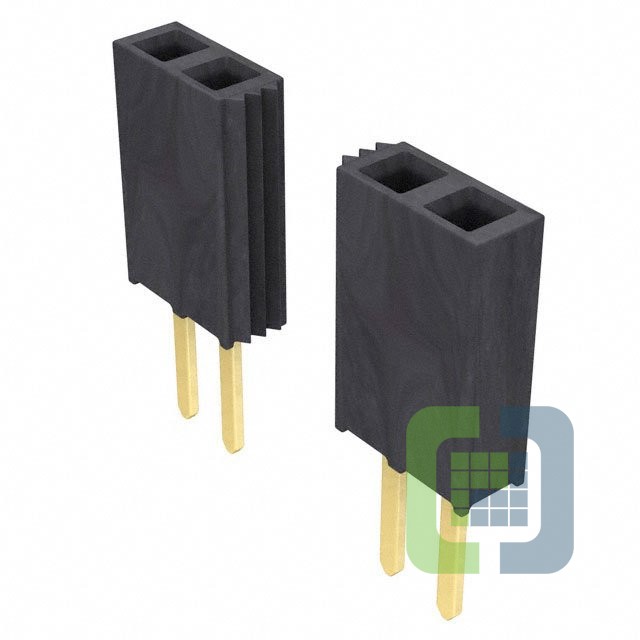

SSW-106-02-G-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT .100" 6POS SNGL GOLD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSW-106-02-G-S Datasheet
-
ECAD Model
- Share
In Stock: 410
Can ship immediately
Pricing:
- 1$1.64
Quote It
Technical Details
- Series:SSW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:6
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.335" (8.51mm)
- Contact Length - Post:0.194" (4.93mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.7A per Contact
- Voltage Rating:-
