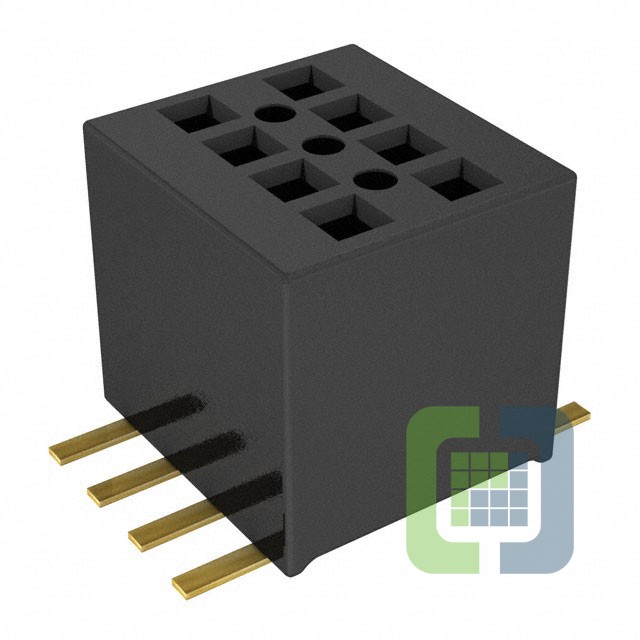

CLE-104-01-G-DV
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 8POS 0.031 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet CLE-104-01-G-DV Datasheet
-
ECAD Model
- Share
In Stock: 388
Can ship immediately
Pricing:
- 1$1.63
- 10$1.47857
- 25$1.38813
- 50$1.32777
- 100$1.2673
- 250$1.14664
- 500$1.05611
Quote It
Technical Details
- Series:CLE
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Pass Through
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:8
- Number of Positions Loaded:All
- Pitch - Mating:0.031" (0.80mm)
- Number of Rows:2
- Row Spacing - Mating:0.047" (1.20mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.130" (3.30mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):2.7A per Contact
- Voltage Rating:-
