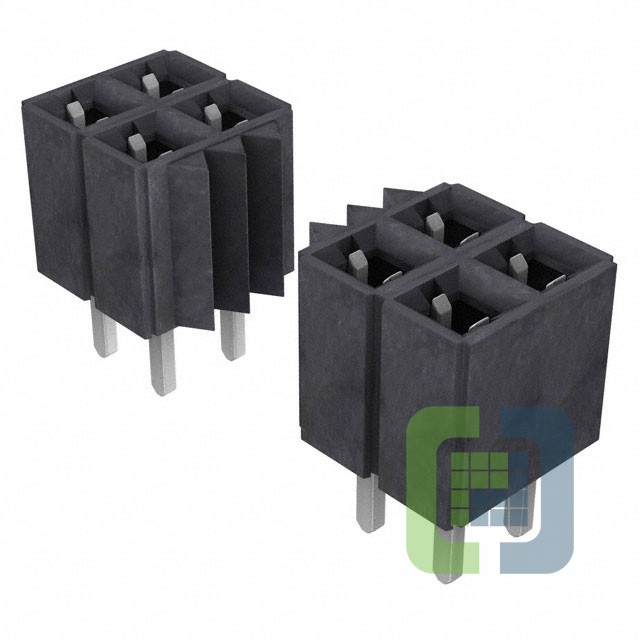

SLW-109-01-T-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 18POS 0.1 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SLW-109-01-T-D Datasheet
-
ECAD Model
- Share
In Stock: 260
Can ship immediately
Pricing:
- 1$1.76
- 10$1.59286
- 25$1.49567
- 50$1.4308
- 100$1.36572
- 250$1.23563
- 500$1.13809
Quote It
Technical Details
- Series:SLW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:18
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.180" (4.57mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:6.09mm
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
