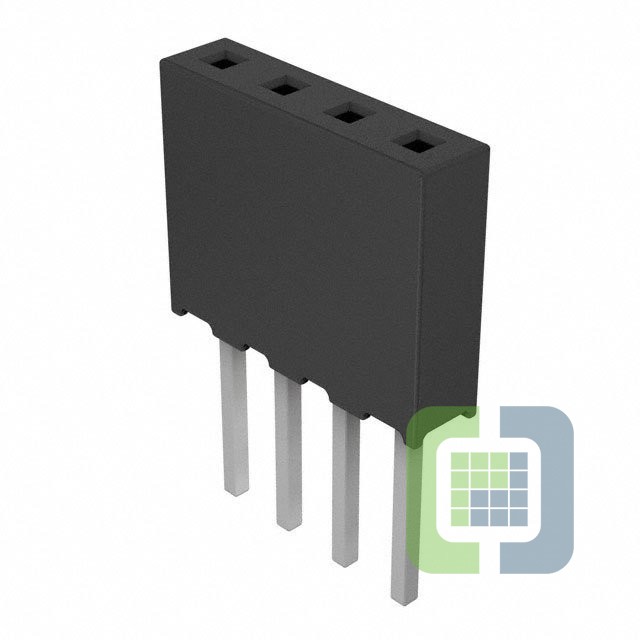

SQT-104-03-L-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 4POS 0.079 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SQT-104-03-L-S Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$1.44
- 10$1.19804
- 100$0.88751
- 500$0.71001
- 1,000$0.64345
- 5,000$0.56579
- 10,000$0.55469
Quote It
Technical Details
- Series:SQT
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:4
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.250" (6.35mm)
- Contact Length - Post:0.208" (5.28mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.1A per Contact
- Voltage Rating:-
