SMM-103-01-S-D

Samtec, Inc.

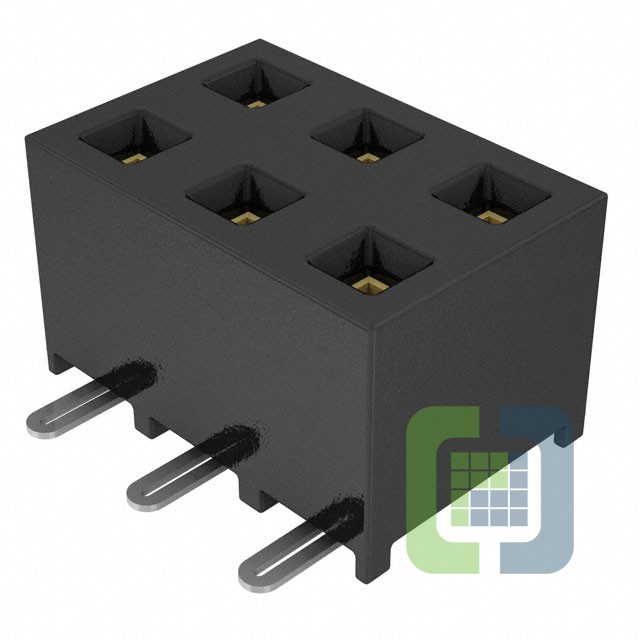

SMM-103-01-S-D Gallery image caption
In Stock: 156

Can ship immediately

Pricing:
  • 1$3.03
  • 10$2.56013
  • 100$1.97829
  • 500$1.62917
  • 1,000$1.51281
  • 5,000$1.42552

Quote It

Technical Details

  • Series:Tiger Eye™ SMM
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.140" (3.56mm)
  • Contact Length - Post:0.120" (3.05mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3.2A per Contact
  • Voltage Rating:350VAC
