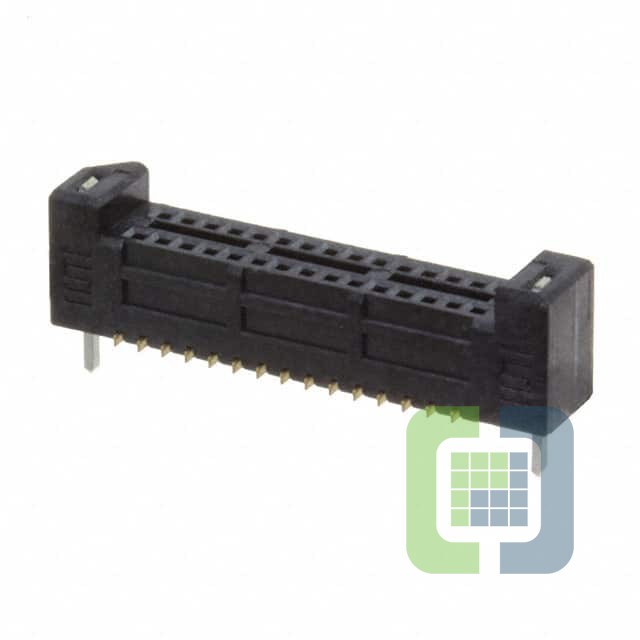

SEML-115-02-03.0-H-D-WT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 30POS 0.031 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SEML-115-02-03.0-H-D-WT Datasheet
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$10.52
- 10$9.73159
- 25$9.20512
- 50$8.7316
- 100$8.153
- 250$7.10102
- 500$6.838
- 1,000$6.575
Quote It
Technical Details
- Series:Tiger Eye™ SEML
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:30
- Number of Positions Loaded:All
- Pitch - Mating:0.031" (0.80mm)
- Number of Rows:2
- Row Spacing - Mating:0.125" (3.18mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.177" (4.50mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Solder Retention
- Current Rating (Amps):2.6A per Contact
- Voltage Rating:-
