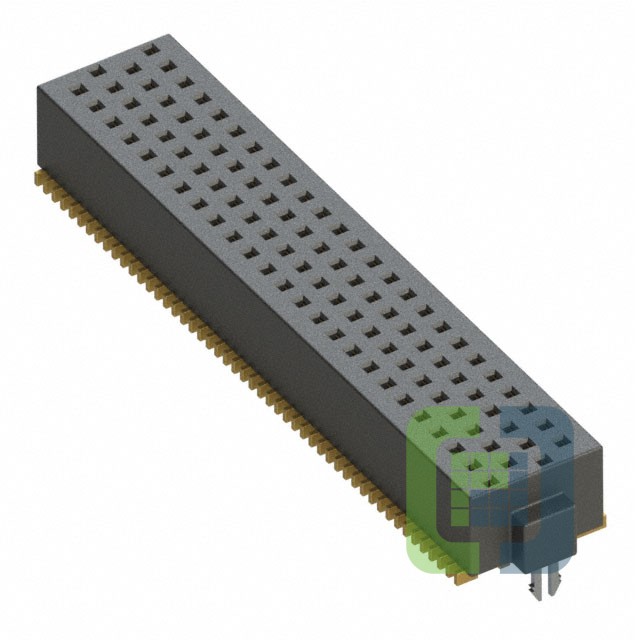

SOLC-125-02-F-Q-LC
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 100POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SOLC-125-02-F-Q-LC Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$14.64
- 10$13.77764
- 100$12.05543
- 500$10.97907
- 1,000$10.5485
Quote It
Technical Details
- Series:FOURRAY™ SOLC
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:100
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:4
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Insulation Color:Black
- Insulation Height:0.160" (4.06mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Lock
- Current Rating (Amps):2.4A per Contact
- Voltage Rating:-
