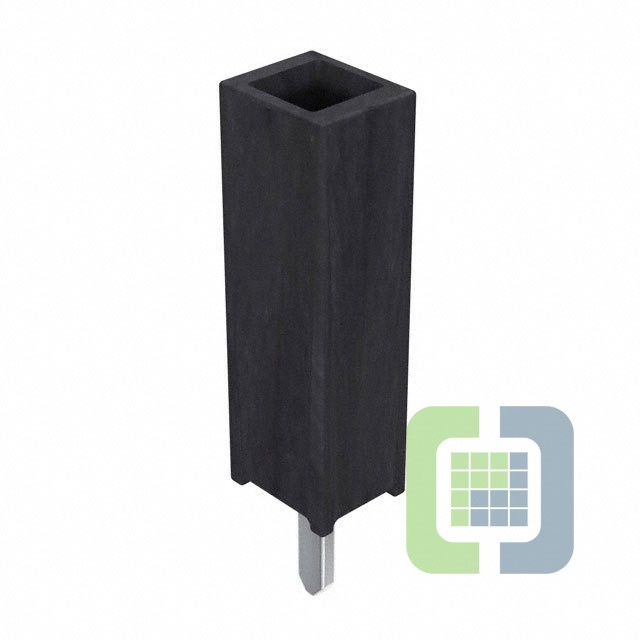

SSW-101-01-S-S

Samtec, Inc.
In Stock: 117

Can ship immediately

Pricing:
  • 1$0.27
  • 10$0.25546
  • 25$0.21766
  • 50$0.19045
  • 100$0.17695
  • 250$0.15648
  • 500$0.14968

Quote It

Technical Details

  • Series:SSW
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:1
  • Number of Positions Loaded:All
  • Pitch - Mating:-
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.335" (8.51mm)
  • Contact Length - Post:0.104" (2.64mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):5.7A per Contact
  • Voltage Rating:-
