CLT-102-02-F-D-BE-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

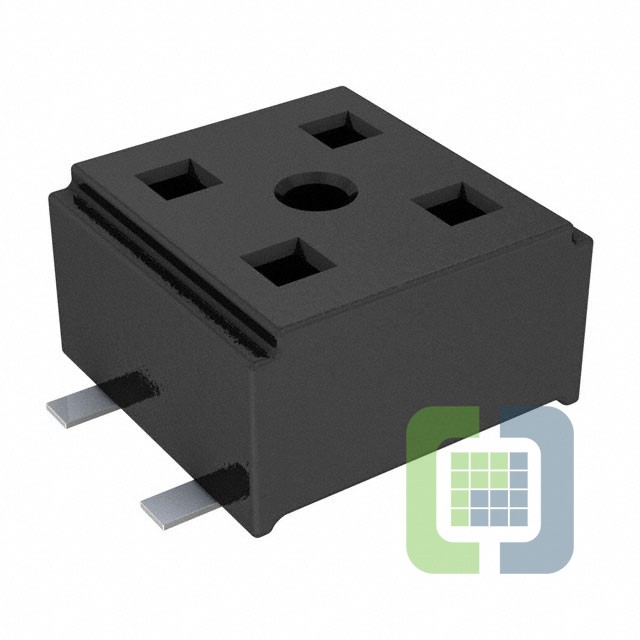

- DescriptionCONN RCPT 4POS 0.079 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet CLT-102-02-F-D-BE-TR Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$0.73225
- 125$0.6667
Quote It
Technical Details
- Series:CLT
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle, Bottom Entry
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:4
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Insulation Color:Black
- Insulation Height:0.083" (2.10mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.1A per Contact
- Voltage Rating:-
