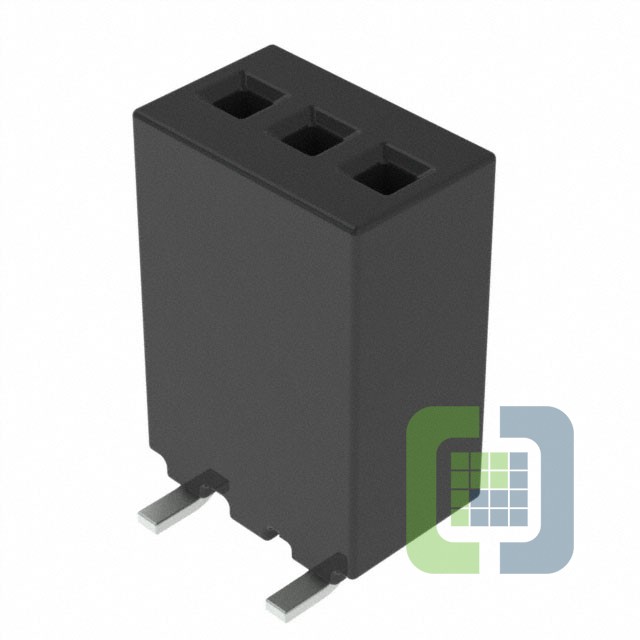

RSM-103-02-L-S-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 3POS 0.05 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$1.50592
- 125$1.21768
Quote It
Technical Details
- Series:RSM
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:3
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.240" (6.10mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3.1A per Contact
- Voltage Rating:-
