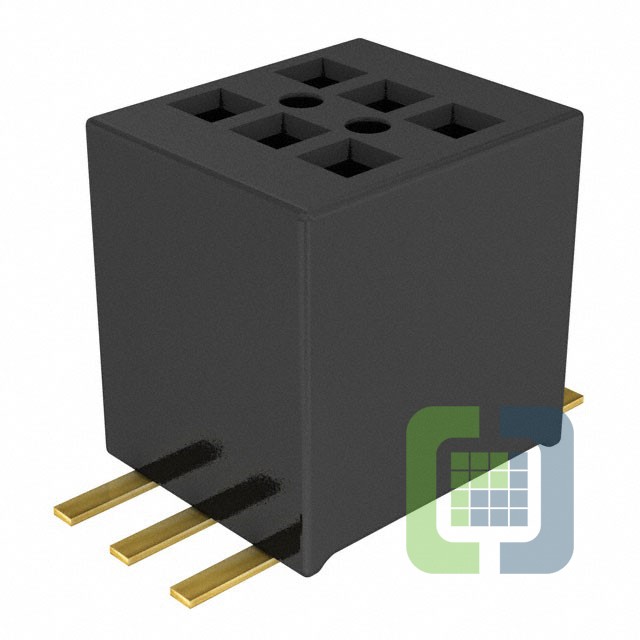

CLE-103-01-G-DV
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 6POS 0.031 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet CLE-103-01-G-DV Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$1.31
- 10$1.1507
- 25$1.08237
- 50$1.03752
- 100$0.99235
- 250$0.90212
- 500$0.81191
Quote It
Technical Details
- Series:CLE
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Pass Through
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:6
- Number of Positions Loaded:All
- Pitch - Mating:0.031" (0.80mm)
- Number of Rows:2
- Row Spacing - Mating:0.047" (1.20mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.130" (3.30mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):2.7A per Contact
- Voltage Rating:-
