RSM-105-02-L-D-LC

Samtec, Inc.

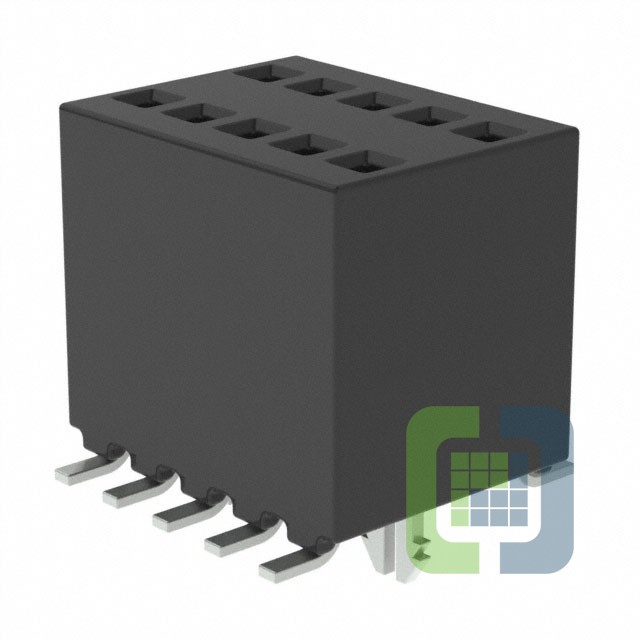

RSM-105-02-L-D-LC Gallery image caption
In Stock: 160

Can ship immediately

Pricing:
  • 1$2.42096
  • 500$2.27064

Quote It

Technical Details

  • Series:RSM
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:10
  • Number of Positions Loaded:All
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.240" (6.10mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Lock
  • Current Rating (Amps):3.1A per Contact
  • Voltage Rating:-
