TLE-107-01-G-DV-P-TR

Samtec, Inc.

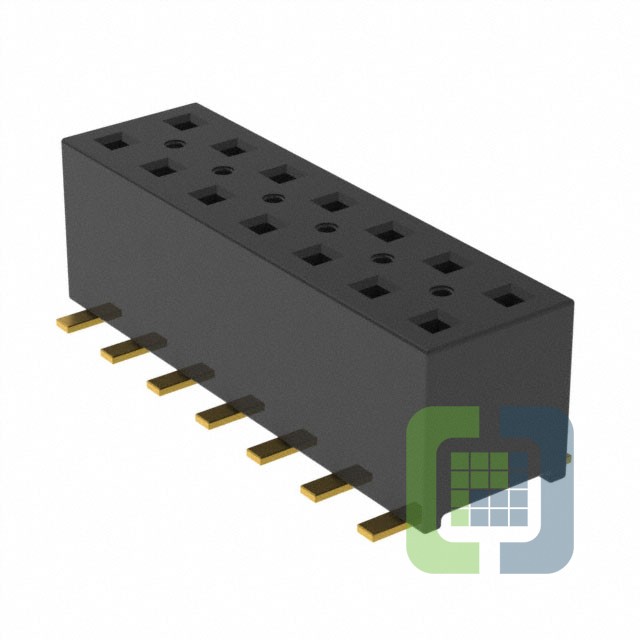

TLE-107-01-G-DV-P-TR Gallery image caption
In Stock: 145

Can ship immediately

Pricing:
  • 1$3.17136
  • 125$2.7191

Quote It

Technical Details

  • Series:TLE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Receptacle, Pass Through
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:14
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.177" (4.50mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Pick and Place
  • Current Rating (Amps):3.2A per Contact
  • Voltage Rating:-
