HLE-104-02-G-DV-BE-A-K-TR

Samtec, Inc.

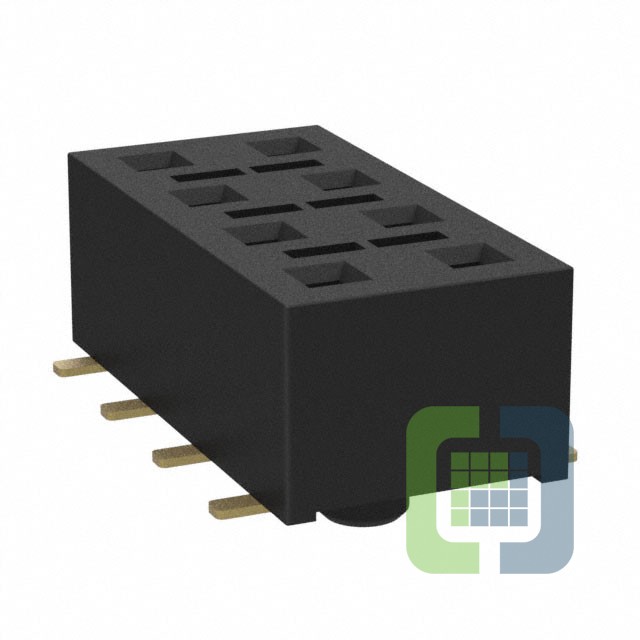

HLE-104-02-G-DV-BE-A-K-TR Gallery image caption
In Stock: 119

Can ship immediately

Pricing:
  • 1$3.14211
  • 125$3.14211

Quote It

Technical Details

  • Series:HLE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:8
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.144" (3.66mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Guide, Pick and Place
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:400VAC
