SSA-124-S-T
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

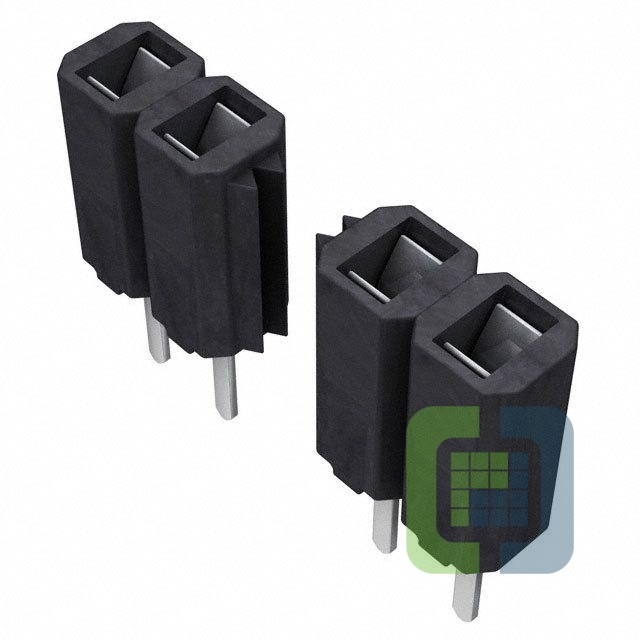

- DescriptionCONN RCPT 24POS 0.1 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSA-124-S-T Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
- 1$2.55
- 10$2.31796
- 25$2.17632
- 50$2.08182
- 100$1.98719
- 250$1.79796
- 500$1.656
Quote It
Technical Details
- Series:SSA
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Breakaway
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:24
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.230" (5.85mm)
- Contact Length - Post:0.151" (3.84mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:-
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:1000V
