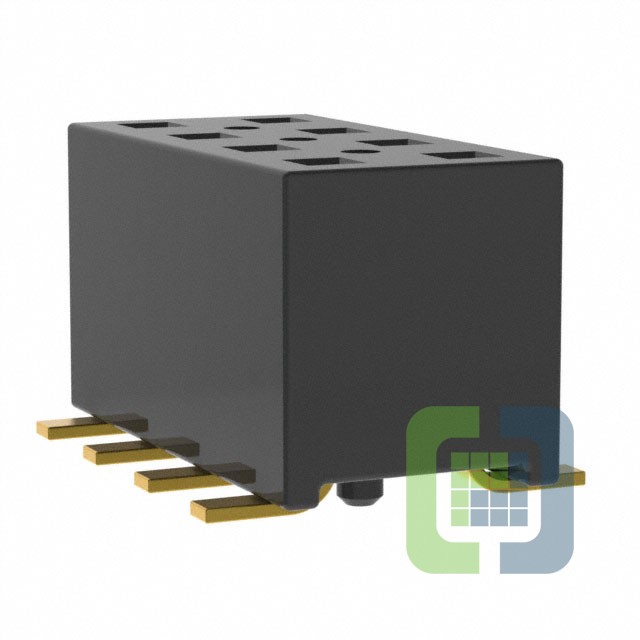

TLE-104-01-G-DV-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 8POS 0.079 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$3.26
Quote It
Technical Details
- Series:TLE
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Pass Through
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:8
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.177" (4.50mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Guide, Pick and Place
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:-
