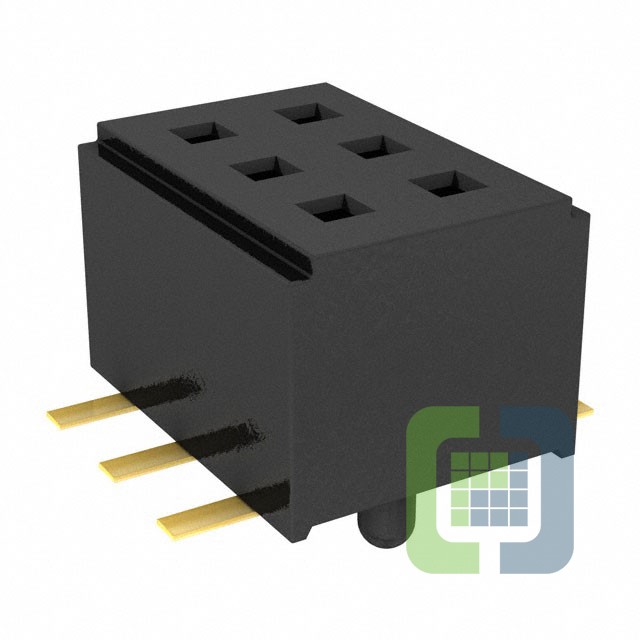

CLM-103-02-H-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 6POS 0.039 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet CLM-103-02-H-D-A Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$2.79872
- 500$2.67474
Quote It
Technical Details
- Series:CLM
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:6
- Number of Positions Loaded:All
- Pitch - Mating:0.039" (1.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.039" (1.00mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.084" (2.14mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Guide
- Current Rating (Amps):2.8A per Contact
- Voltage Rating:-
