SSQ-125-02-T-S-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

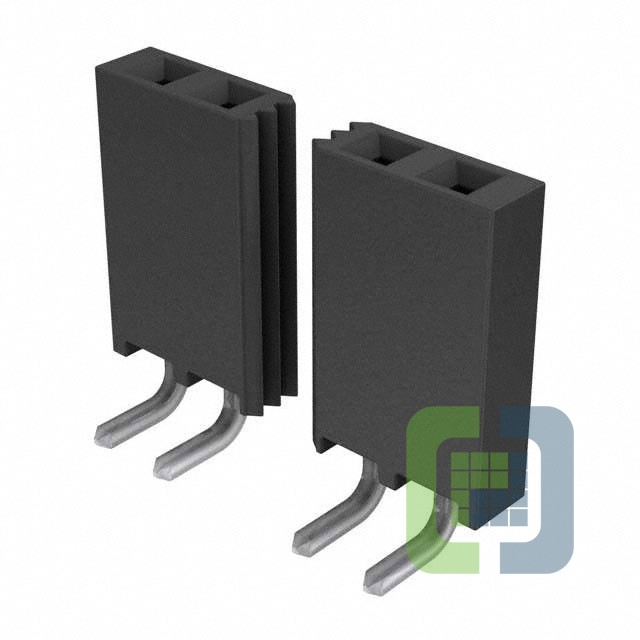

- DescriptionCONN RCPT 25POS 0.1 TIN PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSQ-125-02-T-S-RA Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$2.99
- 10$2.87018
- 25$2.6312
- 50$2.5116
- 100$2.392
- 250$2.093
- 500$2.0332
Quote It
Technical Details
- Series:SSQ
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:25
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.095" (2.41mm)
- Contact Length - Post:0.100" (2.54mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):6.3A per Contact
- Voltage Rating:550VAC
