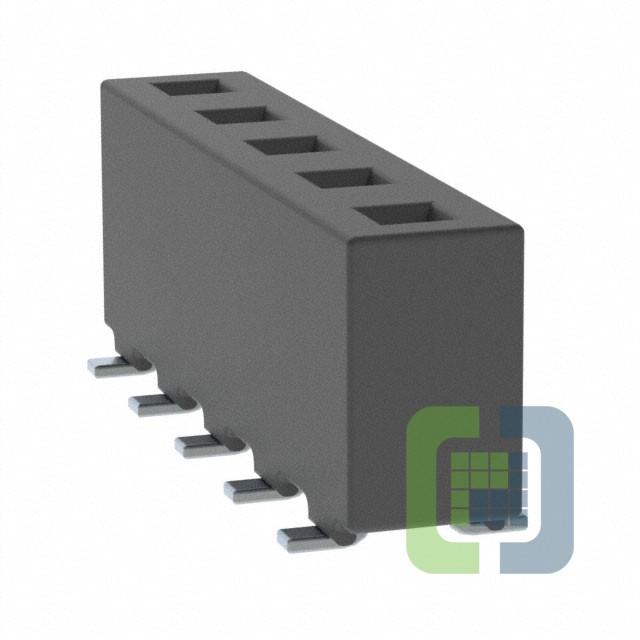

HPF-05-02-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 5POS 0.2 TIN SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet HPF-05-02-T-S Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$4.47
- 10$3.7823
- 100$2.9227
- 500$2.40692
- 1,000$2.235
- 5,000$2.10605
Quote It
Technical Details
- Series:HPF
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:5
- Number of Positions Loaded:All
- Pitch - Mating:0.200" (5.08mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.351" (8.92mm)
- Contact Length - Post:-
- Operating Temperature:-
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
