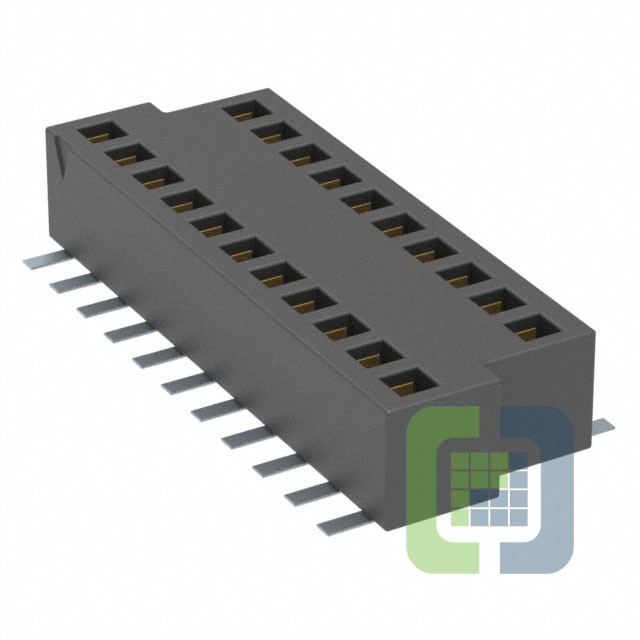

BKS-121-01-F-V

Technical Details

• Series:BKS
• Package:Tube
• Part Status:Active
• Connector Type:Socket
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:21
• Number of Positions Loaded:All
• Pitch - Mating:0.039" (1.00mm)
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull

• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:3.00µin (0.076µm)
• Insulation Color:Black
• Insulation Height:0.084" (2.14mm)
• Contact Length - Post:-
• Operating Temperature:-55°C ~ 125°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:4.14mm, 4.5mm, 5mm, 6mm, 7mm
• Ingress Protection:-
• Features:-
• Current Rating (Amps):2.8A per Contact
• Voltage Rating:-
