SFM-108-03-L-D-LC
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 16POS 0.05 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SFM-108-03-L-D-LC Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$5.83
Quote It
Technical Details
- Series:Tiger Eye™ SFM
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:16
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.180" (4.57mm)
- Contact Length - Post:0.075" (1.91mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
- Ingress Protection:-
- Features:Board Lock
- Current Rating (Amps):3.2A per Contact
- Voltage Rating:250VAC
Related Products

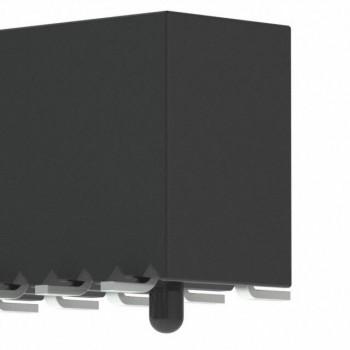

CONN RCPT 10POS 0.05 GOLD SMD
