SSW-116-22-F-D-VS-K-TR
Samtec, Inc.- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 32POS 0.1 GOLD SMD
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSW-116-22-F-D-VS-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$5.91056
- 125$4.69638
Quote It
Technical Details
- Series:SSW
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:32
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Insulation Color:Black
- Insulation Height:0.335" (8.51mm)
- Contact Length - Post:-
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Pick and Place
- Current Rating (Amps):5.7A per Contact
- Voltage Rating:-
Related Products

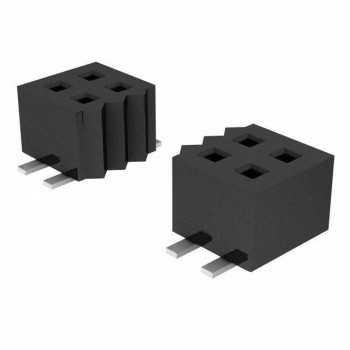

CONN RCPT 16POS 0.079 GOLD SMD
