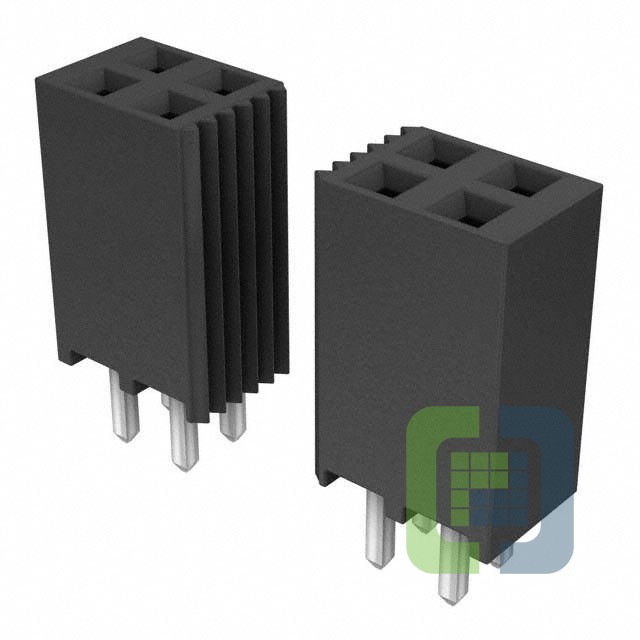

SSQ-122-01-S-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 44POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SSQ-122-01-S-D Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$7.29
- 10$6.98718
- 25$6.37931
- 50$6.0756
- 100$5.77189
- 250$5.16433
- 500$4.86055
Quote It
Technical Details
- Series:SSQ
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:44
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.335" (8.51mm)
- Contact Length - Post:0.104" (2.64mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):6.3A per Contact
- Voltage Rating:550VAC
